Nord
Grand
The grand stage experience
The Nord Grand features a premium weighted keybed with advanced triple sensors that capture the movements of the hammers with exceptional precision, delivering the smooth and natural feel of an acoustic grand piano.

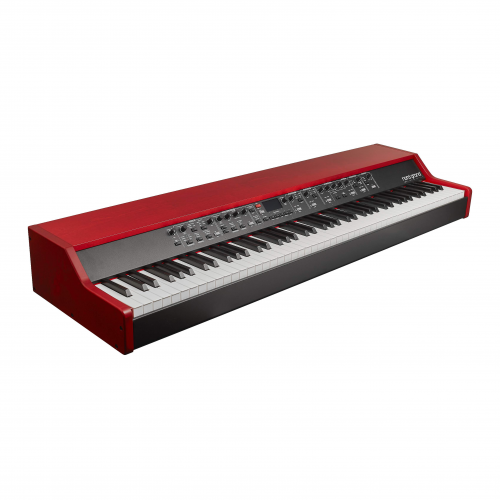

Nord Grand Digital Stage Piano Key points
- 88-note Kawai Hammer Action with advanced triple sensors
- Ivory touch keys
- 2 GB memory for Nord Piano Library
- 120 Voice Polyphony
- Dedicated Piano Filters for Acoustic and Electric Pianos
- 512 MB Memory for Nord Sample Library 3.0
Free Gifts
- Limited edition PBE leather journal cover
Comes With
- Power adapter
- Pedals
- Free delivery within 2 working days
- 1 year local Clavia Nord (Singapore) warranty
Purchase online at
Additional information
| Number of keys | 88 |
|---|---|
| Action | Kawai Hammer Action (HA) |
| Key material | Simulated ebony and ivory keys |
| Sound technology | Nord Piano, Nord Sample Synth |
| Polyphony | 120, 46 |
| Tones | Nord Grand Library, Nord Piano Library, Nord Sample Library |
| Amplifier output | Not applicable |
| Speaker size | Not applicable |
| Colour | Red |
| Piano stand | Not included |
| Dimensions and Weight | 1,122 x 347 x 127 mm, 12.5 kg |
Description
The Nord Grand features a premium weighted keybed with advanced triple sensors that capture the movements of the hammers with exceptional precision, delivering the smooth and natural feel of an acoustic grand piano.
Incorporating the award-winning performance features and hands-on user interface the lightweight Nord Grand not only provides an extraordinary playing experience, but is also an elegant new approach to the stage piano series.
Full Specifications
|
GLOBAL
|
OLED Display | |
|
Seamless Transitions
|
||
|
Split Point Crossfades
|
||
|
16 banks with 25 programs – 400 locations
|
||
|
Organize functionality for programs
|
||
|
Live Mode – 5 Live programs
|
||
|
Global Transpose: +/- 6 semitones
|
||
|
Program Transpose: +/- 6 semitones
|
||
|
Fine-tune: +/- 50 Cents
|
||
|
Kbd Touch: 3 velocity response curves
|
||
|
88-note Kawai Responsive Hammer keybed with Advanced Triple Sensors
|
||
|
Split functionality with selectable split point and LED indication
|
||
|
Optional Split crossfade
|
||
|
Layer functionality
|
||
|
Panel Lock option
|
||
|
Mono Output option
|
||
|
Dynamic Sustain Pedal action with the included Nord Triple Pedal
|
||
| USB-MIDI | ||
|
Free OS updates
|
||
|
PIANO SECTION
|
6 types – Grand, Upright, Electric Pianos, Clavinet, Digital and Misc.
|
|
|
Each category can contain up to 20 different models.
|
||
|
120 Voice Polyphony (stereo/mono pianos)
|
||
|
Piano Timbre/EQ settings (Soft, Mid, Bright) with dedicated Electric Piano filters (Soft, Mid, Bright, Dyno 1 and Dyno 2).
|
||
|
Advanced String Resonance (Generation 2) – adjustable amount
|
||
|
Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
|
||
|
Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 – adjustable amount
|
||
|
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
|
||
|
SAMPLE SYNTH SECTION
|
46 Voice Polyphony
|
|
|
Amp envelope with Attack and Decay/Release
|
||
|
Selectable velocity sensitive low pass filter and dynamic range
|
||
|
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
|
||
|
Volume controllable with Volume Pedal (not included)
|
||
|
MEMORY
|
Approx. 2 GB dedicated to the Nord Piano Library
|
|
|
Approx. 512 MB dedicated to the Nord Sample Library 3.0
|
||
|
EFFECTS SECTION
|
Effect 1
|
Pan, Tremolo, Wah and Ring Modulator
|
|
Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
|
||
|
Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
|
||
|
Effect 2
|
Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
|
|
|
Two selectable depths for each effect
|
||
|
Amp Simulations, Comp and EQ
|
Comp/Amp – three amp/speaker simulations, Tube Overdrive
|
|
|
Drive/Compression amount controlled with the Drive knob
|
||
|
Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
|
||
|
Master Effects
|
Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode
|
|
|
Dedicated Delay Effect – Rate, Amount and Tap-tempo function
|
||
|
CONNECTIONS
|
2 Audio outputs L & R – ¼”, 6,35 mm jacks, unbalanced
|
|
|
1 Monitor input – 1/8″, 3,5 mm stereo jack
|
||
|
1 Headphone output – ¼”, 6,35 mm stereo jack
|
||
|
1 Piano pedal input – ¼”, 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc
|
||
|
1 Volume Pedal input – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
|
||
|
MIDI In, MIDI Out – 5 pin DIN connectors
|
||
|
USB – type B connector – for transferring sounds and USB MIDI
|
||
|
IEC C14 power connector
|
||
|
DIMENSIONS
|
Nord Grand: 1286 mm (50.7″), 168 mm (6.6″), 387 mm (15,2″)
|
|
|
Nord Triple Pedal: 264 mm (10.4″), 224 mm (8.8″), 70 mm (2.8″)
|
||
|
WEIGHT
|
Nord Grand: 20,9 kg (46.0 lbs)
|
|
|
Pedal: 2 kg (4.4 lbs)
|
||
|
INCLUDED ACCESSORIES
|
Nord Triple Pedal
|
|
| User Manual | ||
| Power cord | ||
|
OPTIONAL ACCESSORIES
|
Nord Piano Monitor
|
|
|
Nord Keyboard Stand V2
|
||
| Nord Soft Case | ||
|
Nord Music Stand
|
||
| Dust Cover |
