Nord
Stage 3 Compact
The ultimate instrument for any performing musician
The Nord Stage 3 Compact is an outstanding new flagship instrument features the latest award-winning technologies including the Nord Lead A1 Synth Engine with sample playback, the acclaimed Nord C2D organ, a greatly enhanced Piano Section and extensive hands-on Effects – all in one exceptional performance keyboard.

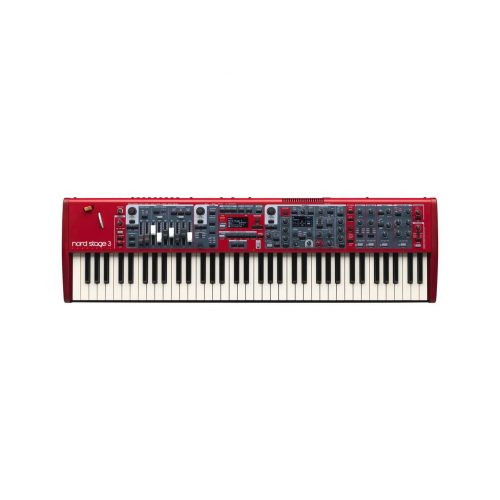

Nord Stage 3 Compact (73 Keys) Digital Stage Piano Key points
- Seamless transitions when changing sounds or programs while playing for uninterrupted flow with OLED displays for parameter adjustments
- Massive sonic flexibility with piano, organ, and synthesizer sounds that can be used simultaneously
- Wide selection of piano tones from grands, uprights, and electronic pianos to choose from
- C2D organ simulations and powerful synth section for any sound you can imagine
Free Gifts
- Limited edition PBE leather journal cover
Comes With
- Power adapter
- Pedals
- Free delivery within 2 working days
- 1 year local Clavia Nord (Singapore) warranty
Purchase online at
Additional information
| Number of keys | 73 |
|---|---|
| Action | Semi-weighted Waterfall action |
| Key material | Matte plastic |
| Sound technology | Nord Organ, Nord Piano, Nord Sample Synth |
| Polyphony | 120, 36 |
| Tones | Nord Piano Library |
| Amplifier output | Not applicable |
| Speaker size | Not applicable |
| Colour | Red |
| Piano stand | Not included |
| Dimensions and Weight | 1,070 x 302 x 104 mm, 10.0 kg |
Description
The Nord Stage 3 Compact is the fifth generation of the successful Stage series continuing Nord’s vision of the ultimate instrument for the performing musician.
The compact version is the smallest and lightest version available and features 73 semi-weighted spring backed keys for rapid playing.
The outstanding new flagship instrument features the latest award-winning technologies including the Nord Lead A1 Synth Engine with sample playback, the acclaimed Nord C2D organ, a greatly enhanced Piano Section and extensive hands-on Effects – all in one exceptional performance keyboard.
The Nord Stage 3 has three sound generating sections; Piano, Organ and Synthesizer, all of which can be used simultaneously. Furthermore, the Nord Stage 3 has 2 separate slots allowing you to have 2 Pianos, 2 Organs and 2 Synths plus Effects at the same time for massive sonic flexibility.
Check out the full sized version: Nord Stage 3 88
Full Specifications
|
GENERAL
|
Master Level Control
|
|
Wooden Pitch Stick
|
|
|
Modulation Wheel
|
|
|
400 Programs – 8 Banks with 10 Pages each. Each Page has 5 Program locations
|
|
|
Song Mode – 8 Banks with 50 Songs each (400 Songs in total). Each Song has 5 Song Parts (Programs).
|
|
| 5 Live Buffers | |
|
2 Individual Slot Setups
|
|
|
3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
|
|
|
Global Mono output
|
|
|
Programmable Transpose +/- 6 semitones
|
|
|
Master Clock functionality with manual, external and tap-tempo rate control
|
|
|
Internal and MIDI clock source
|
|
|
MIDI over USB functionality
|
|
| Level control | |
| Aftertouch | |
|
Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
|
|
|
3 Split Point width (crossfade) options: Lrg, Sml or Off
|
|
|
Keyboard Zones editor mode
|
|
|
ORGAN SECTION
|
Nord C2D B3 Tone wheel Organ simulation
|
|
Vox Continental and Farfisa models
|
|
|
2 Digital Pipe Organ models
|
|
|
9 digitally controlled Drawbars
|
|
|
Physical Drawbars (Compact model only)
|
|
|
Drawbar Live mode (Compact model only)
|
|
|
Percussion controls
|
|
|
Vibrato / Chorus control
|
|
|
Two Drawbar Presets per Slot
|
|
|
2-Part Multitimbral (2 manuals)
|
|
|
PIANO SECTION
|
2 GB memory for Piano sounds
|
|
All sounds can be replaced using Nord Sound Manager (Mac/Win)
|
|
|
120 Voice Polyphony
|
|
|
Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
|
|
|
4 Selectable Velocity Curves
|
|
|
Dedicated Piano filters
|
|
|
Clavinet EQ controls
|
|
|
String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
|
|
|
Selectable Soft Piano Release
|
|
|
Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
|
|
|
Layer (Slot) Detune functionality
|
|
|
2-Part Multitimbral
|
|
|
SYNTH SECTION
|
Nord Lead A1 Synth Engine with Sample Playback
|
|
Dedicated OLED Display for Oscillator section
|
|
|
480 MB Memory for Nord Sample Library 3.0
|
|
|
All samples can be replaced using Nord Sound Manager (Mac/Win)
|
|
|
34 Voice polyphony
|
|
|
Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
|
|
|
Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
|
|
|
*=Not available for Sample/Superwave
|
|
|
Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
|
|
|
Filter Drive: Off, 1, 2 and 3
|
|
|
Filter Tracking: Off, 1/3, 2/3 and Full
|
|
|
3 Unison modes
|
|
|
Amplitude envelope (Attack, Decay, Sustain) with Velocity control
|
|
|
Modulation envelope (Attack, Decay, Sustain) with Velocity control
|
|
|
LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
|
|
|
400 (8×50) Synth Preset locations with Synth Preset categories
|
|
|
Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
|
|
|
LFO and Arpeggiator synchronizable to Master Clock
|
|
|
2-Part Multitimbral
|
|
|
EFFECTS
|
Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
|
|
Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
|
|
|
Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
|
|
|
3 types of Speaker simulations, JC, Twin and Small
|
|
|
Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
|
|
|
Tube amp simulation with adjustable overdrive
|
|
|
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz – 8 kHz and 4 kHz
|
|
|
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
|
|
|
Extended Morphable Parameters – (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
|
|
|
Effect rates/tempo can be synchronized to the Master Clock
|
|
|
Compressor with Fast Mode
|
|
|
Reverb – 6 algorithms with Bright Mode
|
|
|
KEYBOARD
|
Nord Stage 3 88: 88-key Velocity sensitive Hammer Action keyboard with Aftertouch. Range: A-C
|
|
Nord Stage 3 HP76: 76-key Velocity sensitive Hammer Action Portable keyboard with Aftertouch. Range: E-G
|
|
|
Nord Stage 3 Compact: 73-key Velocity sensitive Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E
|
|
|
CONNECTIONS
|
4 Assignable Audio Outputs – ¼”, 6,35 mm jacks, unbalanced
|
|
Stereo Headphone output – ¼”, 6,35 mm stereo jack
|
|
|
1 Monitor input – 1/8″, 3,5 mm stereo jack
|
|
|
Sustain Pedal – ¼”, 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
|
|
|
Sustain input compatible with Nord Triple Pedal (sold separately)
|
|
|
Rotor Pedal – ¼”, 6,35 mm jack. Use a momentary pedal or a switch type pedal
|
|
|
Organ Swell Pedal – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
|
|
|
Control Pedal – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
|
|
|
Program Change Pedal input – ¼”, 6,35 mm jack. Use a momentary two-button pedal like e.g. Boss FS-6, Boss FS-7 etc.
|
|
|
MIDI In – 5 pin DIN connectors
|
|
|
MIDI Out – 5 pin DIN connectors
|
|
|
USB – type B connector for USB MIDI, Software Update and Sound Transfer
|
|
|
Power Cord with IEC C14 connector
|
|
|
INCLUDED ACCESSORIES
|
User Manual |
|
Sustain pedal (88 and HP76 only)
|
|
| Power cord | |
| USB cord | |
|
OPTIONAL ACCESSORIES
|
Nord Keyboard Stand EX
|
| Nord Soft Case | |
|
Nord Triple Pedal
|
|
|
Nord Music Stand EX
|
|
|
Nord Half-Moon Switch (for Compact model)
|
|
| Dust Cover | |
|
DIMENSIONS
|
Nord Stage 3 88: 1287 mm (50.7″), 118 mm (4.7″), 334 mm (13″)
|
|
Nord Stage 3 HP76: 1122 mm (44″), 127 mm (5″), 347 mm (13,6″)
|
|
|
Nord Stage 3 Compact: 1070 mm (42″), 104 mm (4″), 302 mm (12″)
|
|
|
WEIGHT
|
Nord Stage 3 88: 19 kg (41.8 lb)
|
|
Nord Stage 3 HP76: 12,5 kg (27.5 lb)
|
|
|
Nord Stage 3 Compact: 10 kg (22 lb)
|
