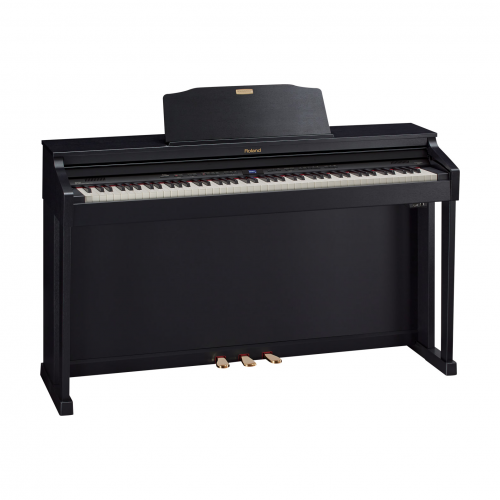

With the HP504, Roland’s latest technologies bring superior piano performance to an attractive and affordable instrument for your home. The SuperNATURAL Piano sound engine has been enhanced with a Dynamic Harmonic feature for fortissimo playing, while the new PHA-4 Premium Keyboard with Escapement and Ivory Feel includes the latest touch-sensing technology to fully explore SuperNATURAL Piano’s rich tonal variations and natural dynamics.
Purchase online at
Number of keys | 88 |
---|---|
Action | PHA-4 Standard Keyboard, with Escapement |
Key material | Roland IvoryFeel |
Sound technology | Roland SuperNATURAL |
Polyphony | 128 |
Tones | Grand Piano: 14 Tones |
Amplifier output | 12 W x 2 |
Speaker size | 12 cm (4-3/4 inches) x 2 |
Colour | Black |
Piano stand | Built-in |
Dimensions and Weight | 1,387 x 429 x 860 mm, 51.5 kg |
With the HP504, Roland’s latest technologies bring superior piano performance to an attractive and affordable instrument for your home. The SuperNATURAL Piano sound engine has been enhanced with a Dynamic Harmonic feature for fortissimo playing, while the new PHA-4 Premium Keyboard with Escapement and Ivory Feel includes the latest touch-sensing technology to fully explore SuperNATURAL Piano’s rich tonal variations and natural dynamics. Individual Note Voicing lets you tailor the sound of each note to your taste, and you can now enjoy the unique sound field of an acoustic piano during your private practice sessions, thanks to the innovative Headphones 3D Ambience effect. And with Roland’s great iOS piano apps, it’s easy to use your favorite Apple mobile devices with the HP504 to enhance your learning and have more fun with the piano.
* The white finish model is only available in certain regions.
If you are interested in a similar model by a more familiar brand, try Yamaha’s Clavinova CLP-625.
Keyboard
|
Keyboard |
88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)
|
Touch Sensitivity |
Key Touch: 5 types, fixed touch
|
|
Keyboard Mode
|
Whole | |
Dual (volume balance adjustable)
|
||
Split (split point adjustable)
|
||
Twin Piano | ||
Pedals
|
Damper (Progressive Damper Action Pedal, capable of continuous detection)
|
|
Soft (capable of continuous detection)
|
||
Sostenuto (function assignable)
|
||
SOUND GENERATOR
|
Piano Sound |
SuperNATURAL Piano Sound
|
MIDI Format |
Conforms to GM2, GS, XGlite
|
|
Max. Polyphony | 128 voices | |
Tones
|
Grand Piano: 14 Tones
|
|
Upright Piano: 5 Tones
|
||
E.Piano: 10 Tones
|
||
Other: 321 Tones (including 8 drum sets, 1 SFX set)
|
||
Temperament |
8 types, selectable temperament key
|
|
Individual Note Voicing (adjustable in individual notes)
|
Stretched Tuning: -50.0 – +50.0 cent
|
|
Note Volume: -50 – 0
|
||
Note Character: -5 – +5
|
||
Master Tuning |
415.3 – 466.2 Hz (adjustable in increments of 0.1 Hz)
|
|
Transpose
|
Key Transpose: -6 – +5 (in semitones)
|
|
Playback Transpose: -6 – +5 (in semitones, including audio files)
|
||
Effects
|
Ambience (Off, 10 levels)
|
|
Brilliance (21 levels)
|
||
Only for Piano Tones:
|
||
Damper Resonance (Off, 10 levels)
|
||
String Resonance (Off, 10 levels)
|
||
Key Off Resonance (Off, 10 levels)
|
||
Cabinet Resonance (Off, 10 levels)
|
||
Dynamic Harmonic (Off, 10 levels)
|
||
Soundboard Behavior (Off, 10 levels)
|
||
Only for Organ Tones:
|
||
Rotary Speaker Effect (Slow/Fast)
|
||
METRONOME
|
Tempo |
Quarter note = 10 – 500
|
Beat |
2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8
|
|
Volume | 11 levels | |
SMF RECORDER
|
Parts | 3 parts |
Save Song |
Standard MIDI Files (Format 0)
|
|
Note Storage |
Approx. 30,000 notes
|
|
Control
|
Song Select | |
Play/Stop | ||
Rec | ||
Rewinding | ||
Fast-forwarding
|
||
Top of song | ||
Part Mute | ||
Mute Volume | ||
Tempo | ||
Tempo Mute | ||
All Songs Play | ||
Count-in | ||
Song Balance | ||
AB Repeat | ||
Tempo |
Quarter note = 10 – 500
|
|
Resolution |
120 ticks per quarter note
|
|
AUDIO
|
Playback |
File Format: Audio File (WAV 44.1 kHz, 16-bit linear format)
|
Recording
|
Keyboard, SMF data
|
|
File Format: Audio File (WAV 44.1 kHz, 16-bit linear format)
|
||
Transpose |
Playback Transpose: -6 – +5 (in semitones)
|
|
Playback Speed | 75 – 125% | |
Control
|
Song Select | |
Play/Stop | ||
Rec | ||
Rewinding | ||
Fast-forwarding
|
||
Top of song | ||
Playback Speed
|
||
All Songs Play | ||
Song Balance | ||
AB Repeat | ||
Center Cancel | ||
INTERNAL MEMORY
|
Save Song |
Standard MIDI Files (Format 0)
|
Songs | Max. 99 songs | |
EXTERNAL MEMORY
|
External Storage |
USB Flash Memory
|
Playable Software
|
Standard MIDI Files (Format 0, 1)
|
|
Roland Original Format (i-Format)
|
||
Audio File (WAV, 44.1 kHz, 16-bit linear format)
|
||
Save Song
|
Standard MIDI Files (Format 0)
|
|
Audio File (WAV, 44.1 kHz, 16-bit linear format)
|
||
OTHER
|
Internal Songs
|
Piano Masterpieces: 77 songs
|
Selection: EU= 10 songs/ US= 18 songs/ Other= 10 songs
|
||
Hanon: 20 songs
|
||
Czerny #100: 100 songs
|
||
Display |
16 segments x 4 and 8 characters LCD (with backlit)
|
|
Language |
English, Japanese (only Display)
|
|
Music Rest |
Tilt Adjustment: 3 levels
|
|
Keyboard Lid |
Slide type (with Classic Position)
|
|
Other Functions
|
Wireless Connect (when using optional Wireless USB Adapter)
|
|
Panel Lock | ||
Auto Off | ||
V-LINK | ||
MIDI Visual Control
|
||
Connectors
|
DC In jack | |
Input jack: Stereo miniature phone type
|
||
Output (L/Mono, R) jacks: 1/4-inch phone type
|
||
USB COMPUTER port: USB Type B
|
||
USB MEMORY port: USB Type A
|
||
Phones jacks x 2: Stereo miniature phone type, Stereo 1/4-inch phone type
|
||
Rated Power Output | 12 W | |
Volume Level (SPL)
|
106 dB | |
* This value was measured according to the method that is based on Roland’s technical standard.
|
||
Speakers |
12 cm (4-3/4 inches) x 2
|
|
Headphones |
Effects: Headphones 3D Ambience
|
|
Controls |
Volume (with the speaker volume and the headphones volume automatically select function, with the volume limit function)
|
|
Power Consumption
|
8 W (5 – 32 W) | |
8 W: Average power consumption while piano is played with volume at center position
|
||
5 W: Power consumption immediately after power-up; nothing being played
|
||
32 W: Rated power consumption
|
||
Accessories
|
Owner’s manual
|
|
Assembly manual (*1)
|
||
Roland 60 Classical Piano Masterpieces
|
||
AC Adaptor | ||
Power Cord (for AC Adaptor)
|
||
Headphone hook
|
||
Screw set (*1) | ||
*1 Supplied with the stand.
|
||
Options (sold separately)
|
Headphones | |
USB Flash Memory (*2)
|
||
Wireless USB Adapter (*2 WNA1100-RL or ONKYO UWF-1)
|
||
Audio Cable | ||
USB Cable | ||
*2 Use USB Flash Memory sold by Roland and Wireless USB Adapter specified above. We cannot guarantee operation if other products are used.
|
||
SIZE AND WEIGHT (WITH MUSIC REST, INCLUDING PIANO STAND)
|
Width
|
1387 mm |
54-10/16 inches
|
||
Depth
|
429 mm | |
16-15/16 inches
|
||
Height
|
1040 mm | |
41 inches | ||
Weight
|
51.5 kg | |
113 lbs. 9 oz | ||
SIZE AND WEIGHT (WITHOUT MUSIC REST)
|
Width
|
1387 mm |
54-10/16 inches
|
||
Depth
|
429 mm | |
16-15/16 inches
|
||
Height
|
860 mm | |
33-7/8 inches |
